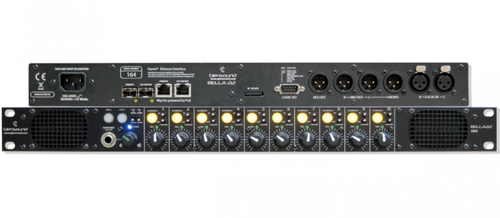

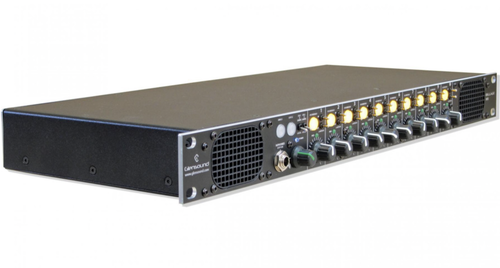

Bella 22 MKII is a 2 buss summing matrix confidence monitor designed for outside broadcast trucks, studios, theatre and professional audio applications. It is perfect for easy and cost effective monitoring of multiple network audio sources, ideal for busy production environments and perfect for monitoring multiple network intercom & programme feeds.

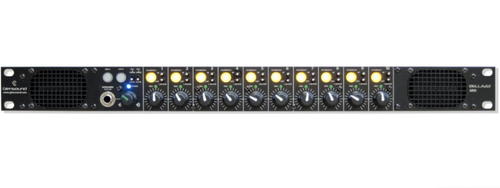

The 2 front panel loudspeakers are driven from a DSP to compensate for their size. The result is surprisingly good, with clear crisp vocals and highly intelligible reproduction of wider band audio sources. They are driven from a class D amplifier and have more than sufficient output level for most environments.

Robust proven construction techniques, simple reliable interface and excellent specification will help make your technician’s life hassle free, whilst the low cost and long asset life will keep the accountant satisfied.

Available in two versions:
Bella 22 - Dante/AES67 network version
Bella 22/R - Ravenna/AES67 network version

Confidence Monitor
20 Network AoIP audio inputs
2 analogue audio inputs
Dante/ AES67 or Ravenna compliant
32 Network AoIP outputs
3 analogue audio outputs
1 x AES3 audio output
10 input level controls
Input select switches
Output routing switches

AUDIO

Channel Input Gain Controls: +10.6 to -31dB
Loudspeaker/ Headphone Gain Control: +10.6 to -31dB
Channel Off Switch: Fully muted (- infinity dB) when off
Channel Input Select Switch: Left Ch Only, Right Ch Only, Both Chs (Stereo)
Channel Output Routing Switch:
Left Ch Only (Selected Inputs mono'd)
Right Ch Only (Selected Inputs mono'd)
Both Channels (Stereo if Both I/Ps selected)
Analogue Input Type: Electronically balanced (can be wired unbalanced)
Analogue Input Impedance: >20kOhms
Analogue Input Connectors: Neutrik XLRs
Analogue Input Line Up: Line level (0dBu)
Analogue Input Frequency Response: >=-0.5dB 22Hz to 22kHz (Measured at Mix Output Mono)
Analogue Input THD + Noise (ref +8dBu): >=0.004% @ 1kHz
Analogue Output Type: Electronically Balanced
Analogue Output Connectors: Neutrik XLRs
Analogue Output Impedance: =Maximum Analogue Output Level: +17.4dBu
Analogue Output Frequency Response: >=-0.1dB 22Hz to 22kHz
Analogue Out THD + Noise (ref +8dBu): <0.002% @ 1kHz
Headphone Impedance: 100 - 1000 Ohms
Maximum Headphone Level: +17dBu into 600 Ohms
Present LED Threshold: -20dBu
Present LED Hold Time: 3 seconds
Present LED Clip Indication: Flashes within 1dB of clip point

NETWORK AUDIO

Network Protocol: Dante (option of Ravenna)
AES67: Compliant
DDM: Certified
Full Scale: 0dBu = -18dBFs
Sample Frequency: 48kHz
Resolution: 24 Bit
Network Interface Type: Gigabit Ethernet
Network Physical Interface
2 x RJ45 copper
2 x SFP Slots (SFP Modules not included)

SIZE AND POWER

Dimensions: 19" Wide, 1RU High, 164mm deep (excluding connectors/ controls)
Weight: 1740g
Shipping Weight: 4Kg
Shipping Carton:
Export Quality cardboard carton
62 x 41 x 12 cms
Mains Input: 100 to 240 VAC 50/60Hz
Power Consumption: PoE (Power Over Ethernet): Maybe powered by standard PoE on either copper network interface

ENVIRONMENTAL

Operating Temperature: 0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing



INCLUDED ITEMS:

RJ45 Cable: 1 x 2M RJ45 network cable
Handbook: Available by download
Mains Cable: 1 x IEC Mains Cable (UK & Europe Only)
