4 Channels
One single user connected to the unit can listen to and communicate with 4* separate locations on the network. Depending upon how the Dante network has been routed the incoming audio circuits and outgoing circuits can be different locations.
PLEASE NOTE THERE IS A LIMITATION TO INCOMING NETWORK STREAMS SEE ‘*’ IN SPECIFICATION.

Dante Routing & Partyline
Audio routing to/ from other devices is setup using Dante controller which allows for point to multipoint routing on outgoing circuits (but only 1 single incoming circuit for each of the 4 channels). An inbuilt partyline facility allows any of the 4 incoming circuits to be routed to any of the 4 output circuits making both simple partyline and more complex group circuits easily configured.

Onboard Mic & External Mic Input
A good quality, clear sounding microphone amplifier, designed for communication purposes, is fitted which also has the benefit of a compressor/ limiter circuit to help keep levels and intelligibility consistent even when the operator gets overly excited. This microphone amp has two microphone sources, either the inbuilt front panel mounted electret capsule which provides good voice intelligibility from normal working distances, or a balanced XLR input for connecting external gooseneck microphones. Twelve Volt Phantom power is also available and can be turned on/ off as required.

Large Diameter Visatron Loudspeaker
What’s the point of an intercom unit if the onboard speaker is so small and cheap that you can’t understand what is being said to you? We use high output, high quality, large magnet Visatron speakers with excellent voice intelligibility to make communication straightforward and easy to understand.

Volume, Panning & Incoming Levels

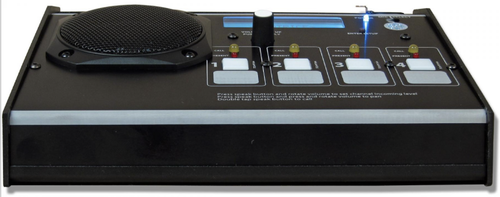

The front panel features an easy to use volume/ setup control. This multifunctional control provides day to day operational control of:
A) Overall volume control (just turn the knob)
B) Incoming channel level (push the speak key and turn the knob simultaneously)
C) Panning (push the speak key and push and turn the knob simultaneously)

Mains or PoE Powered
An inbuilt wide range switch mode mains power supply is fitted for powering the Beatrice D4. It is terminated with a standard IEC plug, making it easy to plug in wherever you are in the World. It can also be powered via the Ethernet cable by standard PoE (Power over Ethernet), which can be supplied by an external PoE switch or a midspan power injector.

Headphone Output
One of our unique headphone amplifiers is fitted to the Beatrice D4. These allow either low or high impedance headphones to be used and automatically adjust the output level to match the impedance of headphones in use. The headphone amplifier is stereo and sources can be panned to left or right ears as desired. The unique headphone amplifier can also drive mono earpieces from its stereo output without any performance issues. Headphone connection is via a standard 6.35mm TRS jack socket located out of the way on the rear panel.

Headset Connector

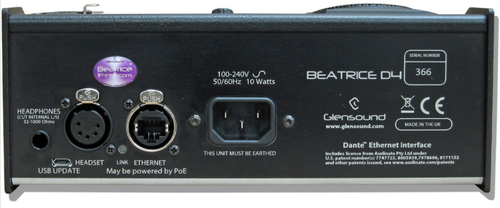

If you prefer an intercom headset with a single XLR connector for microphone and headphones, then fitted as standard to the rear is a 5 pin female XLR headset connector. The microphone input on this headset connector is in parallel with the 3 pin XLR and the headphone output is in parallel with the 6.35mm TRS jack.
A 4 pin male XLR can be fitted to special order instead of the 5 pin female headset connector.

Call Function
A simple call function is inbuilt allowing the operator of one unit to call/alert other users that they want to communicate with them. To call another user the operator double taps the speak key of the channel they want to call, this then flashes a bright yellow call LED on the other users keypanel, which continues to flash until the call is answered. As well as flashing a LED at the receiving end of the call an audible ‘beep’ can be set to alert the user that an incoming call has been placed to them.

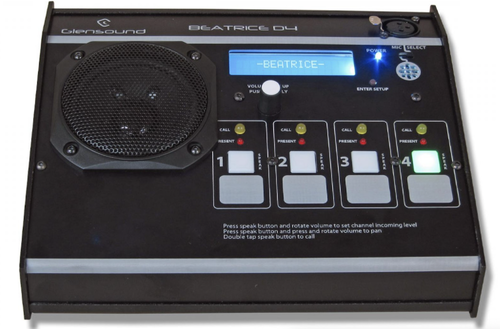

Display for Setup
To make setup of the unit easy and intuitive a display is provided on the front panels. This display provides a simple menu system for setting up such items as: Button Configuration, Input Type (Mic/ Line), Microphone Gain, Phantom Power On/ Off, Sidetone Level (Own voice in own headphones), Partyline/ Loop Through, Mode Mixing/ Cutting of Partyline when User Speaks.

Presence Indicator
Each channel has its own red LED that acts as a presence detector on the incoming audio circuit. When audio is detected the LED is lit and it stays lit for a short period after the incoming audio stops.

Small and Robust

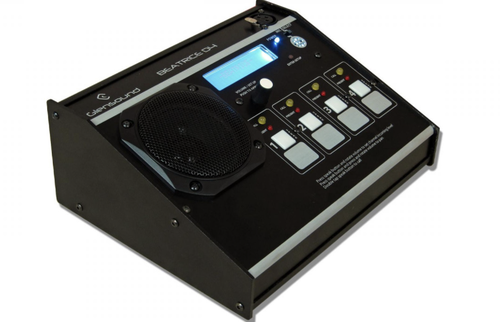

The Beatrice D4 is manufactured using lightweight but strong aluminium. It has laser etched aluminium front & rear panels and powder coated aluminium sides. The form factor has been carefully designed to be as small as the internal electronics allow whilst keeping user buttons, microphone and loudspeaker ergonomically positioned for optimum user experience. Weighing in at just 1.5Kg it is light enough to transport easily but heavy enough to stay put on a busy desk or work surface, and at just 214 x 172 x 41mm it won’t get in the way.

FOUR INCOMING AUDIO CIRCUITS
This device uses Audinate’s Ultimo Chipset.This chipset can receive 4 incoming audio channels each at 48kHz. However this chipset can only receive these 4 audio channels from a maximum of 2 network locations.

NETWORK/ Dante Interface

Physical Interface: 1 of RJ45 Neutrik Ethercon
Audio Sample Frequency: 48kS/s
Transfer Rate: 100Mbps
Dante Chipset: Ultimo UXT-01-004 (Note: Audinate recommends no more than 10 Ultimo chipsets on one network UNLESS another Dante device such as the Brooklyn Module (found in 8 channel Beatrice/ Dark units), is on the same network)
AES67 Compliant: The Audinate Ultimo chipset used is AES67 compliant

AUDIO

Mic Gain Range: +60 to +20dB
Line Input Gain Range: +10 to -20dB
Phantom Power: 12 Volts
Equivalent Input Noise: -110dB (20Hz to 20kHz A weighted 300 Ohms)
Headphone Impedance: 32 - 1000 Ohms
Max Headphone Output Level: +10dB into 600 Ohms
Headphone Connector: 6.35mm (1/4") TRS socket, can be safely connected to TS mono jack plug
Band Pass Filter: 50Hz to 15kHz
Loudspeaker Drive Unit: 8cm (3.3") full range, high efficiency, 10 watt, 130 to 20000Hz

CALL CIRCUIT

Inband Calling Frequency: 20kHz
Amplitude: -20dBFs
Duration Of Signal: 2 seconds
Compatibility: All Glensound Beatrice units and Studio Technologies

POWER

Mains Voltage: 100 to 240 VAC +/-10%
Mains Frequency: 50 to 60Hz
Power Over Ethernet (PoE): 48 Volts
Consumption: 8 Watts
Redundancy: Mains and PoE are dioded together for glitch free redundancy

PHYSICAL

Mechanics: All aluminium with laser etched anodised panels and light textured black powder coated sides
Size: 214 x 172 x 41 mm (W x D x H)
Weight: 1.1Kg (2.42lb)
Shipping Weight: 2.6Kg
Shipping Size: 61 x 41 x 17cms
Shipping Carton: Rugged export quality cardboard carton

ENVIRONMENTAL

Operating Temperature: 0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing

INCLUDED ITEMS

Handbook: Physical A5 (Download .pdf also available)
Network Cable: 2 meter RJ45 to R45 cable



ENVIRONMENTAL

Operating Temperature
0 to +50?C (32 to 122?F)
Storage Temperature
-20 to +70?C (32 to 158?F)
Relative Humidity
0 to 95% non-condensing

As standard the Beatrice D4 is supplied with a 3 pin XLR/ 6.35mm Jack AND a 5 pin XLR headset interface.

It can however be ordered with a 4 pin headset interface instead.

Part numbers are:

Beatrice D4 (5 Pin XLR)

Beatrice D4-X4 (4 Pin XLR)

Wiring for the headset interfaces is to common standards as detailed below. It maybe possible to provide other custom wiring configurations if required, please email sales@glensound.com with your requirements.

Beatrice D4 Wiring Info

Connector type: 5 Pin XLR Socket (female XLR fitted, suitable for mating with cable mounted male)

PIN 1: Mic -
PIN 2: Mic +
PIN 3: GND
PIN 4: Headphone Left
PIN 5: Headphone Right

Beatrice D4-X4 Wiring Info

Connector type: 4 Pin XLR Plug (male XLR fitted, suitable for mating with cable mounted female)

PIN 1: Mic - (Mic GND)
PIN 2: Mic +
PIN 3: Headphone GND
PIN 4: Headphone +
