INPUT ONLY DEVICE
8 Line level analogue inputs
4 AES3 inputs
Auto switching outputs between AES & analogue
16 audio circuits sent to network
Redundant network connections
Redundant power supplies
Network & Power status GPOs
Dante® and AES67 compliant

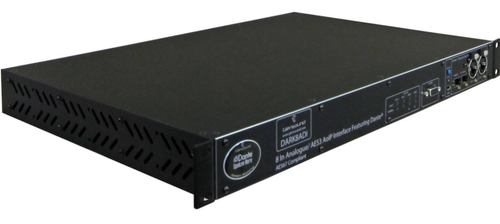

The DARK8ADI (Analogue & Digital Input) is a very powerful Dante®/ AES67 network audio interface, in a robust 1RU 19" subrack. It has 8 off low noise analogue line inputs and 4 off transformer balanced AES3 digital audio inputs. These inputs are transmitted on a fully redundant Dante/ AES67 network interface.

In total 16 audio circuits are sent to the Dante/ AES67 network. Eight of these circuits are always derived from the 4 x AES3 inputs, the other eight are automatically switched between the AES3 and analogue inputs. If the DARK8ADI detects valid AES3 signal on a channel then this will be routed to the network output. If no valid AES3 is detected then the analogue input will be routed to the network output instead of the AES3.

The rugged design, redundant mains powering & redundant network facility of the unit means that it can easily be placed and left unattended wherever audio sources are required.

Eight Analogue Audio Inputs
The DARK8ADI has 8 electronically balanced analogue line level audio inputs. Each input is on its own Neutrik 3 pin XLR socket.

Quality Analogue To Digital Converters
To get the best possible results from your analogue audio inputs, the very best widest range analogue to digital converters (ADCs) currently available are used to make sure the digital audio on your network is as good as it possibly can be.

Four AES3 Audio Inputs
The DARK8ADI has 4 transformer balanced digital AES3 audio inputs. Each input is on its own Neutrik 3 pin XLR socket. These inputs can accept sample rates up to 192kHz.

Analogue/ AES3 Auto Switching
Eight of the audio outputs are derived from both the 4 x AES3 inputs and the 8 analogue inputs, whereby the AES3 inputs take priority to the analogue circuits. Our input circuitry looks for valid AES3 data streams on the AES3 inputs. If one is detected then the pair of audio outputs (AES3 is two audio channels) associated with that circuit will be routed to the Dante/ AES67 output and if no valid AES3 signal is detected then the analogue input will be routed to that output.

AES3 Network Outputs
As well as the switched outputs, the outputs of the 4 x AES3 input circuits are always routed to 8 audio channels of the AoIP network.

Sample Rate Converters
The AES3 audio inputs are fed through sample rate converters so that they match the AoIP networks sample frequency. The AoIP network supports up to 192kHz sampling and the AES3 inputs can be between 32 & 192kHz.

Network Interface
There are 4 network interfaces on the DARK8ADI. There are 2 x Neutrik Ethercon (RJ45) connectors and there are also 2 x SFP slots for customers to fit their own preferred fibre interfaces.

Redundant Network Interface
When using the Dante protocol it is possible to set the DARK8ADI to have a fully redundant network interface whereby a completely glitch free automatic redundant audio network link is provided across 2 of the network interfaces.

Power
Each DARK8ADI can be powered from two independent sources to provide a multi-redundant power option.
Two wide range switch mode power supplies are fitted as standard to provide redundant mains power supplies.

Alarms & LEDs

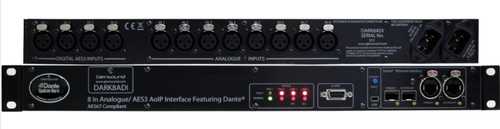

The front panel features two LEDs (one indicating OK and the other fault) for both power supplies and both network ports. This data OK/ Fault information is also provided on solid state relay outputs on front panel D connectors.

Analogue Audio

Maximum Input Level: +18dB
Input Impedance: >20k Ohm
Distortion: 0.0013% @ 100Hz
0.0022%@1kHz
0.00094% @ 10kHz
Reference to +8dBu output
Noise: -93dB@line up A weighted RMS
Dynamic Range: 111dB
Input Type: Electronically balanced (can be wired unbalanced)

Digital AES3 Audio

Frequency Response: flat to 22kHz
Maximum Input Level: 0dBFs
Input Impedance: 110 Ohm
THD+N: 0.00018% relative
Noise: >-123dB (residual) A weighted RMS
Input type: transformer balanced
Dynamic Range: >141dB
Input Frequency: 16-192kHz (sample rate converted to meet Dante network frequency)

Power

Connections: 2 x mains inputs filtered IEC, 100 to 240 VAC 47-63Hz
AC Consumption: 15 Watts@230VAC
Internal Mains Fuse: 20mm 1A anti surge

Physical

Audio Connectors: Neutrik 3 pin XLR sockets
Alarm Connector: 9 way D socket
Alarm Type: solid state relay
Size: 1RU 19” 300mm deep excluding connectors
Nett Weight: 3kg
Shipping Carton: Rugged export quality cardboard 610x420x130mm LxDxH
Shipping Weight: 4.5kg

Environmental

Operating Temperature: 0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing

Included Items

Network Cable: 1 off 2 metre RJ45
Handbook: Available via download
Mains Lead: IEC 2 metres (UK & EU only)
