The Glensound AoIP22 is packaged in a small & rugged format and designed for outside broadcast, theatre and location applications.


Both the AoIP4O and AoIP4I units are designed to easily and quickly interface existing analogue equipment to a Dante® / AES67 network audio system. Being powered by PoE means that only one cable needs to be connected to the network to carry both audio and power, providing flexibility and saving time on installation.

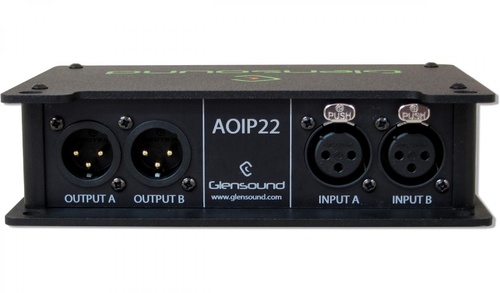

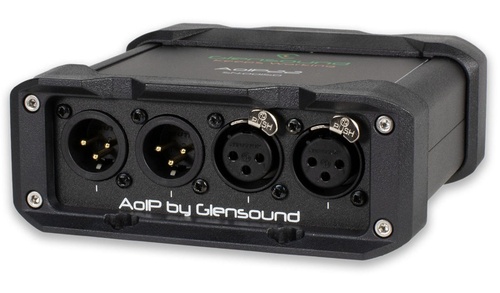

AoIP22 provides 2 balanced analogue audio inputs and outputs from a Dante®/AES67 audio network.


Robust proven construction techniques, simple reliable interface and excellent specification will help make your technician’s life hassle free, whilst the low cost and long asset life will keep the accountant satisfied.

PoE Powering

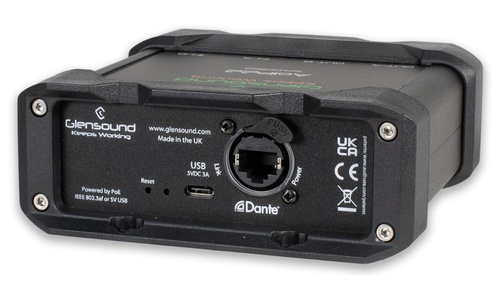

For ease of setup only 1 single cable is needed to transport both power and audio to the AoIP units. The network cable carrying audio can also power the device using standard Power Over Ethernet (PoE) technology when connected to a suitable network switch or to a mid span PoE injector.


EXTERNAL DC POWER INPUT
An industry standard barrel connector is used for powering the AoIP units from an external 12V DC power source.


REDUNDANT POWER
If both PoE and DC power sources are connected then power supply redundancy is automatically enabled, meaning that either one of the power sources can be lost and the AoIP unit will continue working.


POWER ON LED
A bright blue rear panel LED indicates that the device is turned on.


RUBBER FEET
The AoIP units are supplied with stick on rubber feet so if the AoIP4 is to be sat on a desk or the back of a workbench, then the rubber feet are fitted to stop it sliding around.
