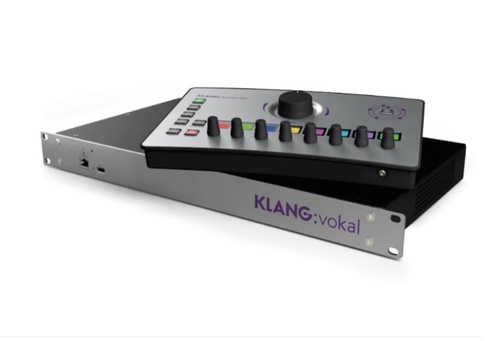

BUNDLE OF KLANG: VOKAL and 6x KLANG:Kontrol

KLANG:vokal is designed specifically to match the feature set of KLANG:kontroller but can also work as a stand alone immersive processor. Based on KLANG’s powerful, new generation, ultra-low latency FPGA core, KLANG:vokal offers 12 mixes of 24 mono or stereo inputs at 48kHz and 96kHz, including the revolutionary Root-Intensity EQs. The musicians can pick up to 24 mono or stereo channels out of 64 Dante and MADI inputs. Mixes are sent via Dante to KLANG:kontroller or can also be sent back via MADI or Dante to a mixing console.

Maximum Flexibility and user friendliness make KLANG:vokal and KLANG:kontroller the perfect match for any House of Worship or Theater application.

* 12 Immersive In-Ear Mixes
* 24 Mono or Stereo Inputs, chosen per Mix from up to 64 Mono Inputs
* High End Personal Monitoring System
* Natural immersive sound through binaural technology
* KLANG Root Intensity EQs for all 64 Mono Inputs and all 12 Mixes

64x64ch Dante HC (48kHz and 96kHz)
MADI BNC Input & Output (64x64ch @48kHz or 32x32ch @96kHz)
Word Clock Input & Output
2x USB ports (front and rear) for Updates and Showfile exchange
2x Ethercon combined Dante & Control Network Ports
2x Ethercon combined Dante & Control Network Ports with Multicast Filter
1x PoE enabled Dante & Control Port (front) for direct KLANG:kontroller operation
1x IEC Power Supply 110–240VAC
Processing Latency 1/4ms
96 kHz | 48 kHz
1 RU
Weight: 3.6kg | Size body: 44.0 / 4.5 / 27.5 cm | Front panel (width): 48.5cm | 19 inches


KLANG:kontroller delivers fast tactile user control of channels, groups and immersive mixing via an intuitive interface.

Being compatible with all KLANG Immersive In-Ear Mixing Processors, KLANG:kontroller is the first hardware controller with full control right at your fingertips. It delivers fast tactile user control of channels, groups and immersive mixing via an intuitive interface. The times of outdated name tags and dialling through all channels are over with 8 displays providing clear channel names and color coding.

Relative DCA group mixing and full single channel control via eight push rotary encoders provides important, fast access. The studio grade headphone amplifier delivers crystal clear audio for in-ear monitors and high impedance headphones, with both 3.5mm (1/8”) as well as 6.3mm (1/4”) stereo TRS connectors. KLANG:kontroller gives musicians full control of all relevant functions, while the engineer can still overview and control all mixes via the KLANG:app or DiGiCo SD or Q series consoles.

To perfect the immersive experience, binaural True Ambient microphones are built into the unit. These can be blended into the immersive in-ear mix, along with a local stereo aux input for, for example, a click track or playback from a phone. The mix can be sent back to the Dante network or, alternatively, the ambient microphones or aux input can be shared with other musicians.
OVERVIEW
* Compatible with all KLANG Immersive In-Ear Mixing Processors
* Fast tactile user control of Groups, Channel and Immersive mixing
* Displays for Channel labels with colour coding, status, metering
* Binaural TrueAmbient Microphones
* High-Power headphone output with fast level control
* Stand alone or mic stand mounted
* Dante audio connectivity
* Robust physical KLANG control surface
* Dedicated balanced audio outputs for monitor outputs or butt kickers
* Local aux input that can be easily be sent back to the immersive processor for distribution and sharing

TECHNICAL DETAILS
8x Push Rotary Encoders for Mixing and Configuration
8x Push Buttons for Mute, Solo, Channel and Group Banks, Configuration
2x2ch Dante Ultimo
1x Neutrik EtherCON
2x XLR line level Outputs
1x Stereo Aux line level input
PoE powered or DC power supply (included)
3.5mm (1/8") Stereo Headphone output (front)
6.3mm (1/4") Stereo Headphone output (rear, if connected it mutes front 3.5mm (1/8") output)
USB port for Software Updates and Preset Exchange
96 kHz | 48 kHz
Weight: 1.1kg | Size body: 27.9 / 17.0 / 5.7 cm
